Chamber volume 73–254 litres

Steam sterilizer UNISTERI^® HP IL represents a sterilization response to challenges of micro-organisms in the lab. Nutrient media, solutions in open or closed bottles, highly pathogenic samples of micro-organisms, solid or porous materials or materials sensitive towards pressure changes, contaminated material, used filters, animal boxes, animal food, food and other materials – all these items set the wide spectrum of our requirements towards materials that may be quickly, perfectly and reliably disinfected and sterilized by the steam sterilizer UNISTERI^® HP IL.

Chamber volume 148–2020 litres

The STERIVAP^® HP IL steam sterilizer is a universal steam sterilizer designed for sterilization of various types of solid, porous and liquid materials. STERIVAP HP IL finds its use mainly in pharmaceutical and biotechnological facilities, but it is also popular in the field of animal treatment units, microbiology, molecular biology and waste decontamination. The basic design of the sterilizer is based on EN 285+A1 and the requirements of cGMP. Modern automation in conjunction with the design of the device and the supplied documentation ensures the validability of processes. STERIVAP HP IL is characterized by a robust design using the highest quality materials for long service life, high reliability, safe operation and fast sterilization.

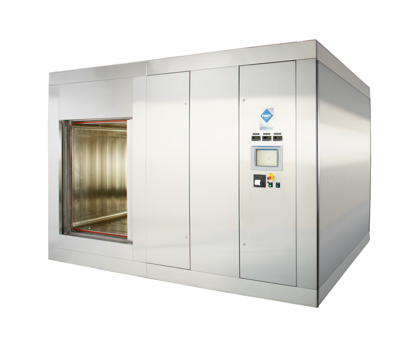

A sterilizer using hot water shower technology for fast and safe final sterilization of large amounts of solutions in closed containers, including solutions placed in containers highly sensitive to temperature and pressure such as filled syringes, infusion bags, vials, ampoules, bubble packs, etc. Using powerful pumps and massive piping we achieve a high flow of water, which provides us with fast heating and cooling of the charge in the chamber. Powerful external heat exchangers provide heating and cooling of circulating water via heating steam and softened cooling water. Heating and cooling media are strictly separated from the circulating water. The circulating water passes under high pressure and high speed through the perforated plate, which achieves an even distribution of water and at the same time the temperature in the sterilization chamber. We adapt Aquapro sterilizers to different customer requirements as far as their capacity and size is concerned.

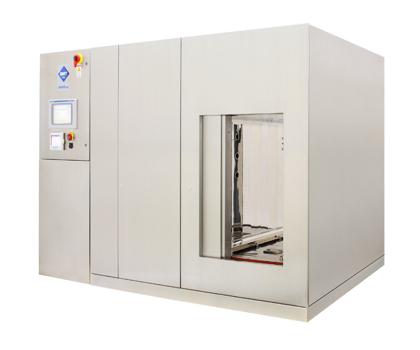

A steam sterilizer for use in manufacturing in pharmaceutical or biotechnological facilities, where process validation is an essential requirement for the sterilizer operation. Steripro sterilizers are the most modern sterilization systems composed of the highest quality components. The cGMP design ensures temperature stability better than +/- 0.5 °C. The sterilizer is controlled by PLC automation ensuring repeatability of the process regardless of ambient conditions. Steripro sterilizers can be equipped with a combination of programs using a powerful water ring pump to ensure fractional evacuation suitable for sterilization of various solid materials, porous and packaged materials, plugs, hoses, filling equipment components, etc. Solution programs for sterilizing liquids in open or closed containers can use a gravity deaeration system in addition to pulse evacuation. Effective cooling of solutions after sterilization is achieved by compressed air in the chamber in combination with cooling of the shell with cold water. We adapt Steripro sterilizers to various customer requirements as far as their capacity and size is concerned.

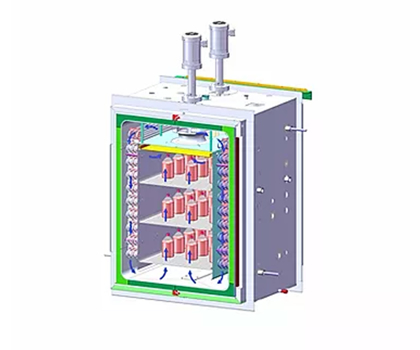

A steam sterilizer using "steam-air mix" technology designed primarily for effective final sterilization of solutions in open and closed containers, including solutions placed in containers very sensitive to temperature and pressure such as filled syringes, infusion bags, vials, ampoules, bubble containers, etc. Clean steam is used in the sterilizer to heat the solutions, while filtered compressed air is injected into the chamber to compensate for the rising temperature and pressure inside the solution containers. The fans in the chamber ensure even mixing of steam with air in the entire space of the chamber to achieve temperature stability in the range of +/- 0.5 °C according to the requirements of cGMP. At the end of the cycle, the sterilized product is dry and ready for labelling. The sterilizer can be equipped with a powerful pump for sterilization of solid, packaged and porous materials, plugs, hoses, etc. We adapt Ventipro sterilizers to various customer requirements as far as their capacity and size is concerned.

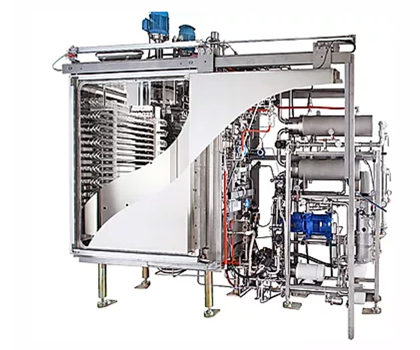

A combined steam sterilizer enabling sterilization of almost any material and packaging suitable for sterilization at 121 °C. The sterilizer is equipped with a powerful water ring pump to ensure fractional evacuation suitable for sterilization of various solid materials, porous and packaged materials, plugs, hoses, filling equipment components, etc. Effective final sterilization of solutions in open and closed containers, including solutions placed in packages highly sensitive to temperature and pressure such as filled syringes, infusion bags, vials, ampoules, bubble packs are provided by the "steam-air mix" technologies using fans in the chamber to evenly mix steam with air and shower with hot water based on circulating water heated and cooled by powerful external exchangers. Combined sterilizers are an ideal solution for contract pharmaceutical manufacturers and development centres, enabling selection of a suitable sterilization method according to the changing types of sterilized materials. The Combipro sterilizers can also be used for low-temperature gas sterilization, if they are connected to H2O2 with special sockets and if they are equipped with the necessary accessories and controls. We adapt Combipro sterilizers to various customer requirements as far as their capacity and size is concerned.

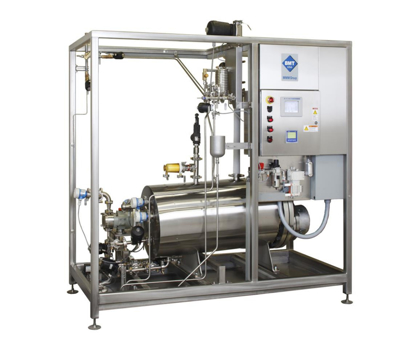

Electric sanitary steam generators consist of pressure vessels made of 316L stainless steel. All necks and heating elements are sanitary, the waste pipe is sloping. The fittings, including connections, welds and valves, are again made of 316L stainless steel and in the sanitary design. The heating elements are also made of 316L stainless steel to ensure their long service life. The generator is equipped with an automatic desilting system. If the purest steam is required, the generator is equipped with a steam separator, in which all impurities and residual moisture are removed from the steam to the waste during the flow. The quality of the condensate from the final product corresponds to the quality of the water for injection. We adapt our electric steam generators to various customer requirements as far as their capacity and size is concerned.

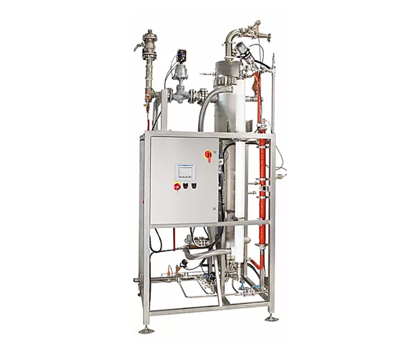

Sanitary steam-steam exchangers use heating steam to produce pure steam. The pressure vessel as well as the heat exchanger heating shell are made of 316L stainless steel and can be made as single-shell or double-shell. The exchanger is approximately 40% filled with demineralized water from below. Water vapour rises to the top of the vessel, where additional heating separates residual moisture. The steam removed from the container is clean, dry and saturated. Any impurities from the feed water are drained to the waste using a built-in desilter. If the purest steam is required, the exchanger is equipped with a steam separator, in which all impurities and residual moisture are removed from the steam to the waste during the flow. The quality of the condensate from the final product corresponds to the quality of the water for injection. We adapt our electric steam generators to various customer requirements as far as their capacity and size is concerned.
