FRIOCELL

Incubators with Forced Air Circulation with Cooling

‹ ›

Product images are for illustrative purposes only and may differ from the actual product.

The high technical standard of our FRIOCELL^® incubators allows exact incubation processes both for variation and deviation. The units have very short recovery times and show an excellent results in keeping the precise regulation. A unique cooling system ensures, that the samples are not dried while cooling. A high performance system of lighting ensures outstanding homogenous parameters for tests and growth conditions. These devices are designed for use in biotechnology, botany, food processing industry, cosmetics, chemical industry etc.

Volume: 55, 111, 222, 404, 707, 1212 litres
Working temperature: 0°C up to 100°C
FC EVO as optional equipment up to -20°C
FC EVO as optional equipment of chamber decontamination up to 160°C (except for the 1212 litres volume)
Refrigerant: R134a without CFC (for -20°C R449a without CFC)
CO₂ concentration: 0,2% up to 20%
Inner glass door
Interior: stainless steel, mat. No. 1.4301 (AISI 304)

I am interested in FRIOCELL

Product series description FRIOCELL

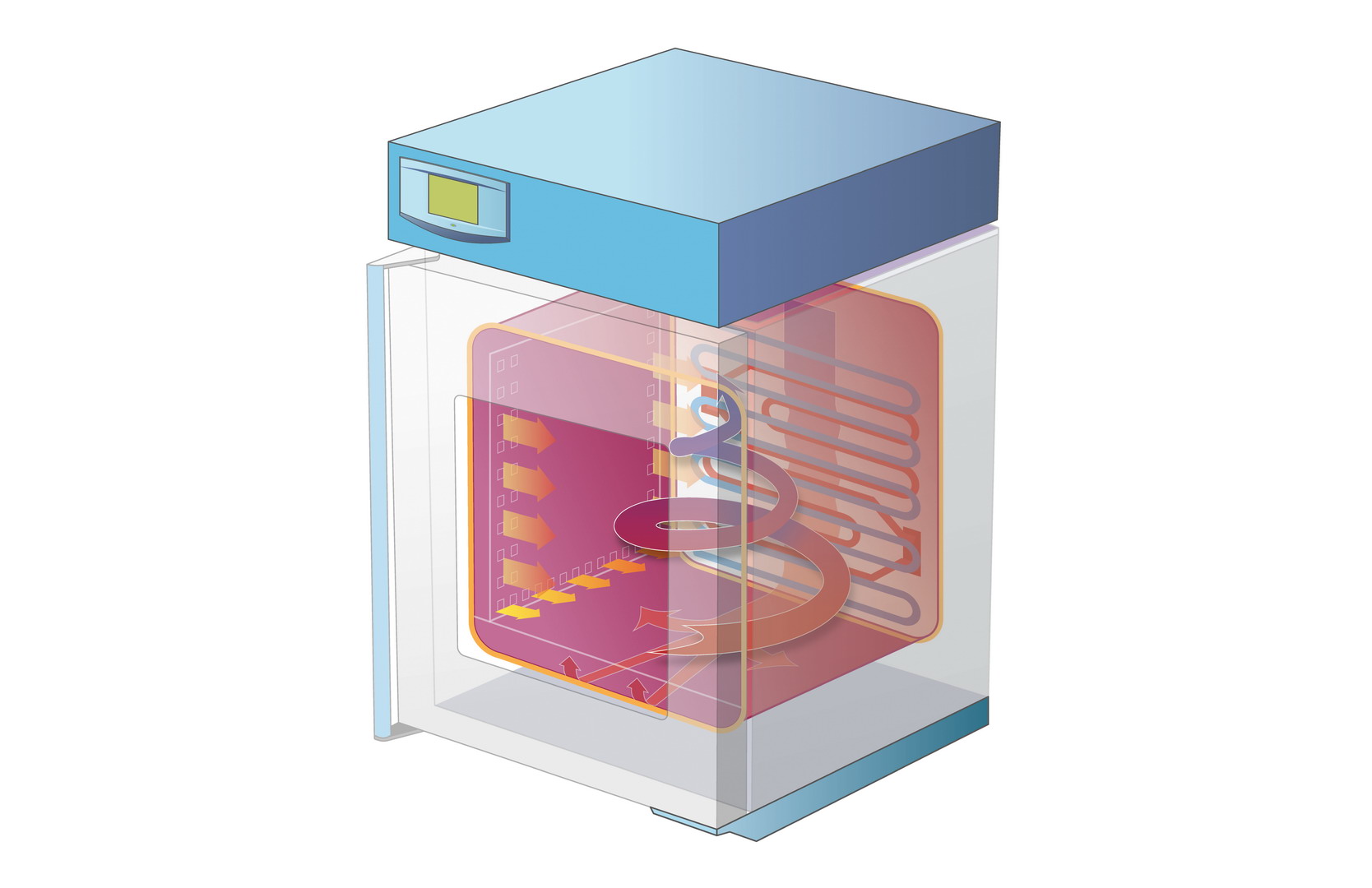

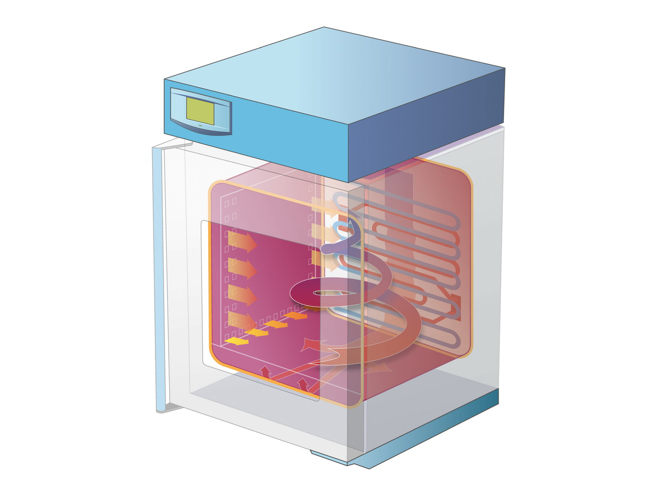

Forced Air Circulation with Cooling

The principle of operation is based on fine forced circulation of air in connection with patent-protected powerful cooling located in the chamber. The cooling system together with multi-processor control automatics offers exact and economical simulation of selected natural processes and it reduces samples evaporation.

Programmable Exposition Lighting

New generation of the FRIOCELL^® device offers wide possibilities of selected lighting use. The variability of placement, selection of light sources, user friendliness and possibility of fluent intensity control meet even the most demanding requirements towards applications with exposure lighting.

Fluorescent tubes in doors
Fluorescent Tubes in shelves
LED lighting in the door
White LED lighting in shelves

Product Series Description

The FRIOCELL^® product line can be used in biotechnology, botany, zoology, food industry, cosmetics, chemical industry, etc. The patented system of cooling and air flow in the chamber guarantee a rapid and precise reaching of the selected temperature profile in the chamber and consequently an ideal process of sample heating.

The FRIOCELL product line offers high operating comfort, precise regulation, and possibility to reach even extreme short times of temperature changes and short times of temperature recovery in the chamber after the door opening. It is therefore suitable for demanding and exact tests and sample cultivation processes.

Meeting the requirements of regulations 2014/35/EU, 2014/30/EU, ICH 279/95 Option 2, FDA 21 Part 11, 2011/65/EU, 517/2014/EU.

Basic Design Components

Sturdy design and perfect protection against corrosion are ensured by a self-supporting outer jacket made of galvanized steel sheet with hard and resistant baking varnish on the outer side. The inner double-jacket chamber and the door panel are made of high-quality stainless steel (DIN 1.4301, AISI 304). For the purposes of energy saving and minimizing the heat radiated to the ambient air, the chamber is perfectly insulated with an ecological insulating material. The inner walls of the chamber can be easily removed without using any tool, e.g. for the purposes of cleaning. On top of that the chamber has a fan with a speed regulation, and an inner glass door. The door is secured at four points for perfect tightening.

_{Changes in the design and make reserved.}

ECO line

EVO line
Control panel
LCD display 3 inches (7,6 cm)
• Readability of the display is ensured by active backlight and use of trans-reflective FSTN technology • Adjustable display contrast depending on device placement
• Large signs on the display visible from afar
• Current values during the device operation are enlarged for easy readibility
Colored touch screen 5,7 inches (14,5 cm)
• Graphic preview of the program progress
• Control through colour icons
• Annual data recording in graphic and numeric form
Intuitive control Yes Yes
Microprocessor process control Fuzzy logic The Fuzzy logic technology, unlike conventional mechanical or electronic control (PID), evaluates data from a specific process, set by the chamber size, working temperature, humidity and other controlled variables after the program is started, using a specially developed software. Based on this information, it continuously adjusts the control input values (intensity of heating, cooling, etc.) and optimizes the regulation process to minimize the rise time to the process parameters without overshooting. In this way it is possible to achieve the set working level of quantities in the shortest time without unnecessary energy consumption and to maximize the efficiency of the work with the device. Likewise, Fuzzy logic reduces recovery times after opening the device door during the operation cycle. Yes Yes
Multi-lingual communication Yes Yes
Acoustic and visual alarm Yes Yes
LED indicator of device functionality Yes Yes
RS 232 Use: PRINT, PrinterArchiv, WarmComm 4 Yes Yes
USB Device Use: PrinterArchiv (only ECO), WarmComm 4 Yes Yes
USB Host USB Host is used for export and import of data from flash drive (data recording, programs) Yes (optional equipment) Yes (optional equipment)
SD slot and SD card • Export - recording of data, programs, user interface (users administration), communication settings, audit trail
• Import - of programs, user interface (users administration), communication settings No Yes
WIFI connection Use: WarmComm 4, webserver, email; android application CLC EVO monitor, for remote data transfer, control and diagnostics No No (optional equipment)
Ethernet Use: PrinterArchiv, WarmComm 4 Yes (optional equipment) Yes (optional equipment)
Remote Access Remote access based service diagnostics No Yes
Multi-level administration of users (compatible with FDA 21 Part 11) No Yes
Internal data storage memory (FDA 21 Part 11 compatible data logger) No Yes
Programs a segments
- 9 programs
- 2 segments in each program
- (8 segments with ECO PLUS extension)
- až 99 cycles
- possibility to set up an infinite program
- Up to 100 programs
- up to 100 segments for each program
Programmability
Real-time programming and cycling (With ECO PLUS also temperature ramps)

Ramp setting, cycling and real-time program control
Security
- Keypad lock to prevent accidental key presses
- Customizable code to run the program
- Adjustable code to change the program parameter and change the protection thermostat values
- Control of access to the device features through users login
- Multi-level administration of users
- Control access to device features using user logins
More information
- Durable foil keyboard with SoftTouch touch-sensitive surface
- Mechanic response of keys
- Lit symbols integrated directly in the foil keyboard
- Export data online and offline
- Preset service programs for quick fault diagnosis
Volumes offered
